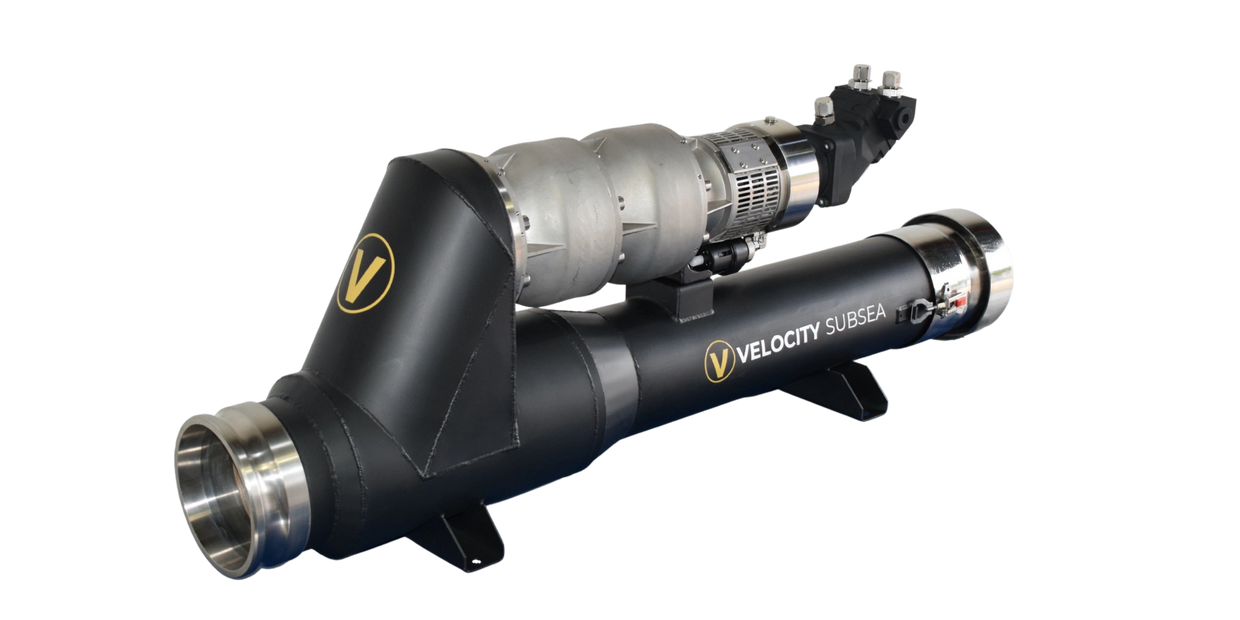

VELOCITY SUBSEA 6" ROV DREDGER
Velocity Subsea’s 6“Hydraulic ROV Dredge offers the next step forward in dredging performance and reliability.
By using the latest design techniques and modelling processes we can offer the most efficient and reliable dredger on the market today. The easy-to-use compact design with everything required supplied in one easy to use package.
The Velocity 6” dredger requires only 50-60LPM@200Bar. With a max flow rate of 7750 LPM – 8600 LPM respectively. This is higher than any other 6” ROV dredger of its type.
Having the increased ejector flow gives Velocity Subsea the highest suction rate available, this is even more impressive given the low power requirements. Greatly increasing efficiency when it comes to clay, rock dump removal or when extended suction distances are required.
Product Packaging Contents
- 6" VELOCITY ROV DREDGER
- SUCTION HOSE WITH CAMLOCK - 3.5 Mtrs long.
- SHORT SUCTION HEAD – 450mm LONG
- SWIVEL SUCTION HEAD – 895mm LONG
- FISH TAIL WITH DOUBLE BOLT CLAMP.
- EXHAUST – 185mm LONG (The Dredge System will always be shipped with short exhaust fitted)
- EXHAUST – 980mm LONG
- 3 X HYDRAULIC HOSES - 3mtrs long with 8JIC Female ends
- 3 x SPIRAL HOSE CLAMPS
- 3 x SPARE 6” CAMLOCK GASKETS
- 1 x MANUAL
